Product Presentation

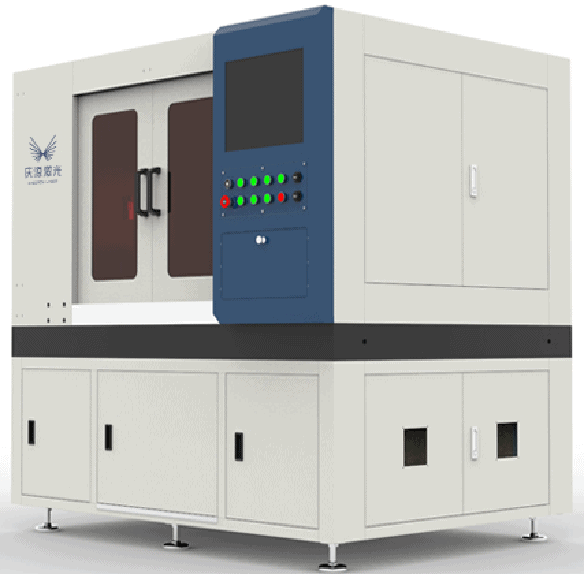

1.This machine is mainly for high-speed laser processing of thin plate, the whole machine is stable in operation, mature technology, high cutting efficiency;

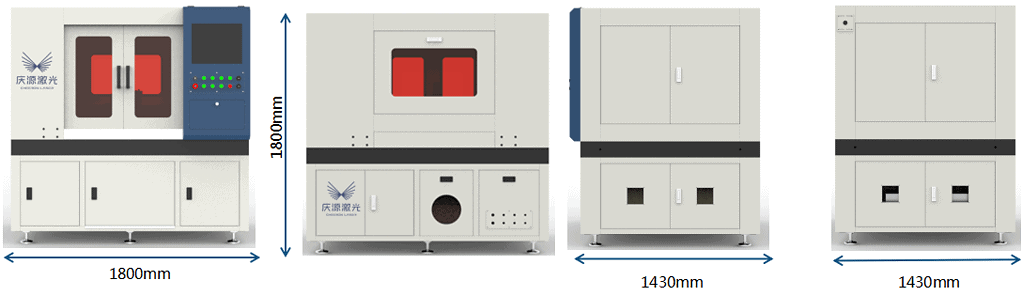

2.Covering an area of about 1800mm*1430mm, the weight of the machine is about 1 .4T.
Product Modle

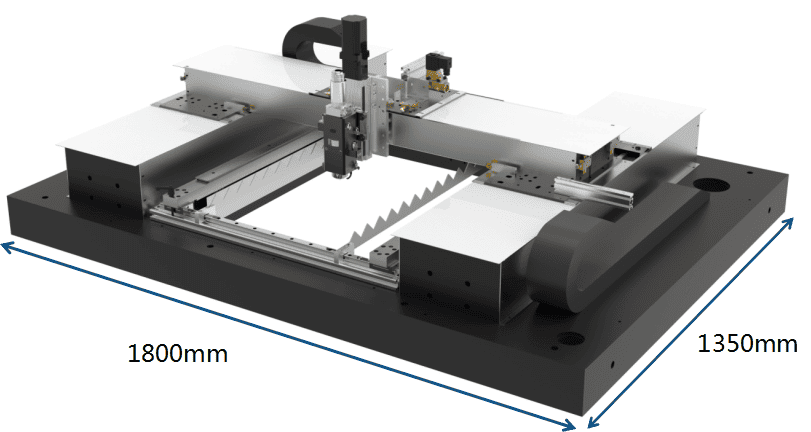

1.The frame adopts marble structure with good overall rigidity and high strength;
2.The crossbeam body adopts lightweight design with good acceleration performance, and is precision machined by CNC gantry milling machine to ensure accurate movement.
Main Parameters
| Modle | QYP-6060 | |
| Processing Width | 600×600(mm) | |
| Max Acceleation | 1.0g | |
| X-axis | Rapid Movement Speed | 40m/min |
| Valid Itinerary | 600mm | |
| Position Accuracy | ±0.02mm | |
| Repeat Positioning Accuracy | ±0.005mm | |
| Y-axis | Rapid Movement Speed | 40m/min |
| Valid Itinerary | 600mm | |
| Position Accuracy | ±0.02mm | |
| Repeat Positioning Accuracy | ±0.005mm | |
| Z-axis | Itinerary | 100mm |
