High-Speed Split-Type V-Grooving Machine

Inherits the efficiency and accuracy of the high-speed series while enhancing operation flexibility. It adopts a separate blade support design, allowing independent movement for cutting and grooving, improving processing quality and saving machining time.

The modular structure ensures superior edge cutting and faster tool replacement. Equipped with a full servo system and intelligent operation interface, this model is perfect for high-precision metal V-grooving in architectural decoration and custom panel applications.

Get Quote

Product Parameters

Category	Item	RGEK-3200	RGEK-4000	RGEK-5000	RGEK-6000
Processability	Processing Length	3200 mm	4000 mm	5000 mm	6000 mm
	Processing Width	1250/1500 mm	1250/1500 mm	1250/1500 mm	1250/1500 mm
	Processing Thickness	0.4–4.0 mm	0.4–4.0 mm	0.4–4.0 mm	0.4–4.0 mm
	Minimum Edge Distance	8 mm	8 mm	8 mm	8 mm
Processing Speed	Tool Holder (Y-axis) Movement	0–120 m/min	0–120 m/min	0–120 m/min	0–120 m/min
	Clamp (Y1-axis)	0–60 m/min	0–60 m/min	0–60 m/min	0–60 m/min
	Tool Head (Z-axis) Up/Down	10 m/min	10 m/min	10 m/min	10 m/min
Accuracy	Repeat Positioning Accuracy (Y-axis)	±0.01 mm	±0.01 mm	±0.01 mm	±0.01 mm
	Minimum Resolution (Y-axis)	0.001 mm	0.001 mm	0.001 mm	0.001 mm
Table	Table Flatness	≤ 0.03 mm	≤ 0.03 mm	≤ 0.03 mm	≤ 0.03 mm
External Size	Length	5400 mm	6300 mm	7200 mm	8300 mm
	Width	2320/2480 mm	2320/2480 mm	2320/2480 mm	2320/2480 mm
	Height	1560 mm	1560 mm	1560 mm	1560 mm

COOPERATE

Why Choose Us?

Outlined below are some key reasons to choose us.

Competitive Price

Thanks to our batch manufacturing process, we can offer the best quality machines at a lower price.

Technical Support

When a breakdown occurs, our technicians are available for both online and onsite assistance and repair.

Short Lead Time

We offer delivery within 20 days for standard machines and 45 days for customized machines.

Quality Control

Before shipment, all machines undergo inspection by our quality control department.

Quality Guarantee

We provide a 15-year guarantee for the machine frame and a 1-2 year guarantee for parts and accessories for every product.

Expert Solutions

We offer professional and expert suggestions for the type of machine that will meet your requirements.

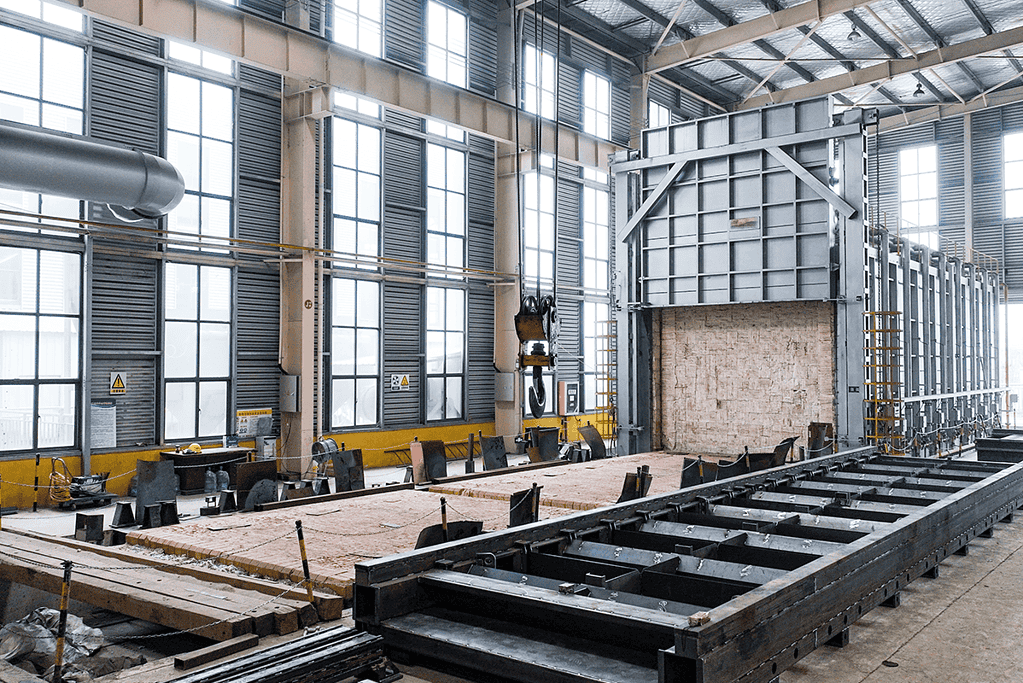

Our Processing Equipment

Only with advanced processing equipment can high-quality machine tools be produced.

Processing Equipment Gallery

FAQs

Got Questions? We’ve Got Answers

What is a V-Grooving Machine?

A V-Grooving Machine is a specialized piece of equipment used in sheet metal fabrication to create V-shaped grooves or channels in metal sheets. These grooves allow for precise bending and folding of the metal, which is essential in various industries for creating complex shapes and structures.

HALDEN Corporation offers which kinds of V-grooving machines?

Horizontal V-grooving machine : An economical solution suitable for cutting thinner metal sheets.
Vertical V-grooving machine : Suitable for cutting thicker sheets, providing better cutting quality.

What are the main applications of V-Grooving Machines?

HVAC (Heating, Ventilation, and Air Conditioning) duct work
Electrical enclosures and cabinets
Architectural metal panels
Signage and display manufacturing
Automotive components
Aerospace parts

What types of materials can be processed with a V-Grooving Machine?

Aluminum sheets
Stainless steel sheets
Mild steel sheets
Copper sheets
Some composite materials (depending on the machine specifications)

What are the key features to look for in a V-Grooving Machine?

Maximum working length and thickness capacity
Grooving angle range
Motor power and speed
Automatic or manual operation
Safety features
Precision and accuracy of grooving
Ease of blade replacement and maintenance

What is the typical grooving angle range for these machines?

Most V-Grooving Machines offer a grooving angle range between 60° to 135°, with some models providing wider ranges for increased versatility.

How is the grooving depth controlled?

Grooving depth is typically controlled through adjustable depth stops or digital control systems, allowing for precise and repeatable groove depths.

How do I choose between a Vertical and Horizontal V-Grooving Machine?

Vertical V-Grooving Machines: Best for high-precision tasks, smaller workpieces, and environments with limited space.
Horizontal V-Grooving Machines: Ideal for larger workpieces, longer cuts, and high-volume production. They are also more suitable for applications where the workpiece needs to remain stationary during processing

Is special training required to operate a V-Grooving Machine?

While basic operation is relatively straightforward, proper training is recommended to ensure safe and efficient use of the machine, as well as to maximize its capabilities.

What maintenance is required for a V-Grooving Machine?

Cleaning the machine after each use
Lubricating moving parts
Checking and tightening bolts and screws
Inspecting electrical components
Sharpening or replacing blades as needed

How do I choose the right V-Grooving Machine for my needs?

The maximum sheet size and thickness you’ll be working with
The types of materials you’ll be processing
Required grooving angles for your projects
Production volume and speed requirements
Available workspace and budget
Automation needs (manual vs. CNC-controlled)

Can V-Grooving Machines be integrated into existing production lines?

Yes, many V-Grooving Machines can be integrated into existing production lines, especially CNC-controlled models that can communicate with other automated systems.

What safety features should I look for in a V-Grooving Machine?

Emergency stop buttons
Safety guards around moving parts
Two-hand operation controls
Foot pedal controls for hands-free operation
Safety interlocks on access panels
