●Automatic storage
Realization of tube management in layers according to specifications;
Automatic transportation and material preparation according to plan.
●Material storage body
By the frame body and motor body, are used in large cross-section surface high-strength thick-walled steel manufacturing, good rigidity and strength.
●Visual Recognition
The system is equipped with visual localization function,
Able to recognize the specific position of the pipe.
●Intelligent partition control
Electromagnet picks up tubes and sponge suction cups pick up tube separators.
●Efficient loading mechanism
X-axis and Z-axis work together accurately to position the material quickly.
●Automatic waste sorting
Sponge suction cups automatically identify the isolation plate, easy to transfer manually.
●Full-stroke pneumatic chuck
Automatic pressure regulation, pneumatic clamping, flexible and rigid.

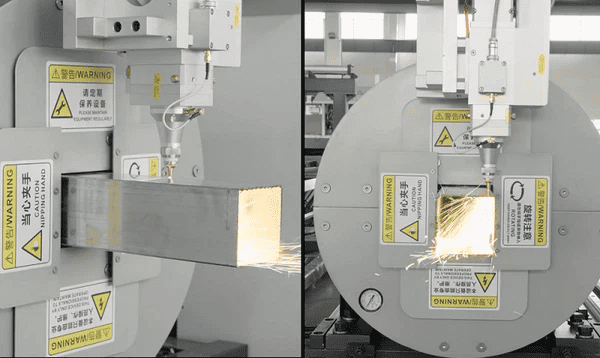

●Offside cutting
Full tube cutting;True zero tailing.

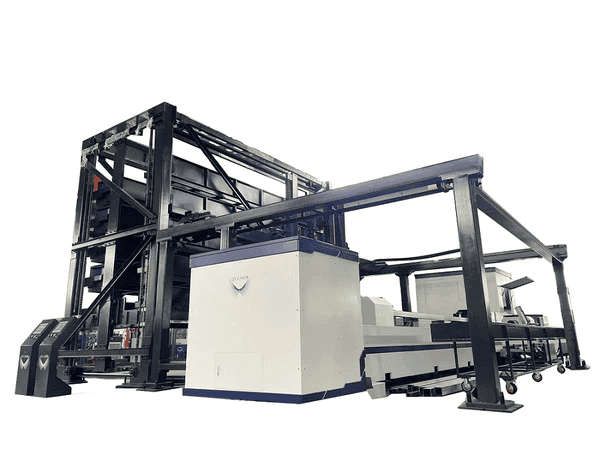

Pipe Storage
| Single layer maximum net load | 3T |
| Lift horizontal movement speed | 10m/min |
| Vertical speed of lift movement | 9m/min |
| Air source pressure | 0.6MPa |
| Dimensions inside each pallet | 6000*600*550mm |
| Overall dimension | 7200*6800*7200mm |
Pipe Laser Cutting Machine Loading Robot
| Longest feeding pipe length | 6000mm |
| Minimum feeding pipe length | 3000mm |
| Square pipe | 20*20-220*220mm |
| Maximum single pipe weight | 300kg |
| Overall dimension | 7300*200*4600mm |
3 Chuck Pipe Laser Cutting Machine of Zero Tailing Wastage
| Max Operating Speed | 100m/min |
| Laser Power | 1500W-6000W |
| X/Y Positioning Accuracy | ±0.03mm/m |
| X/Y Repeated Positioning Accuracy | ±0.02mm |
| Rotation Speed | 100rpm |
| Operating Voltage | 380V/50Hz |
