Features
●Strong dynamic performance, greatly improving cutting efficiency;

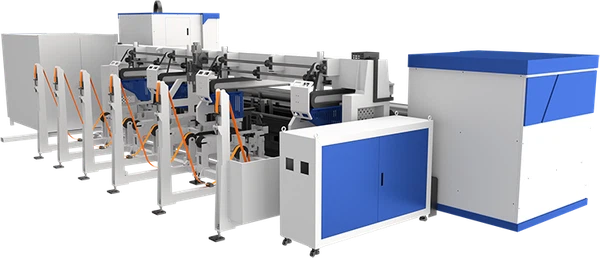

●High -speed fully automatic CNC laser cutting machine, high -quality laser cutting can be carried out on round pipes, square tubes and other profiles;
●Automatic feed, diversified collection, neat and efficient, highly automated integration.
Technical Parameter
| Max Cutting Speed | 100m/min | Laser Power | 1500W-3000W |
| Max Acceleration | 1.2G | Machine Rated Power | 32KW |
| X/Y Positioning Accuracy | ±0.03mm/m | Machine Running Temperature | 0℃-40℃ |
| X/Y Repeated Positioning Accuracy | ±0.02mm | Machine Running Humidity | ﹤90% |
| Operating Voltage | 380V/50Hz | Transmission method | Precision rack and pinion |
Application Material
●It is used to cut 1-10mm of round tube and square tube and other alien metal tubes. It can be suitable for a variety of pipes with a variety of pipes with a variety of pipe ports of 20-port and 200mm.
Series Products
| Model | 0160 | 0260 |
| Pipe Length(mm） | 6000 | 6000 |
| Exterior Dimensions(mm) | 12500*4800*2800 | 12500*4800*2800 |
| Pipe Diameter(mm) | Round tube Φ20-Φ200, square tube side length 20-200 | Round tube Φ20-Φ200, square tube side length 20-200 |
